Fuji

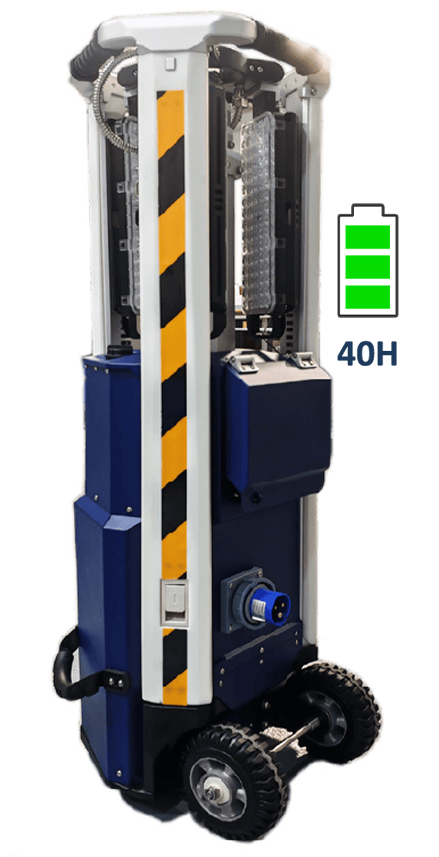

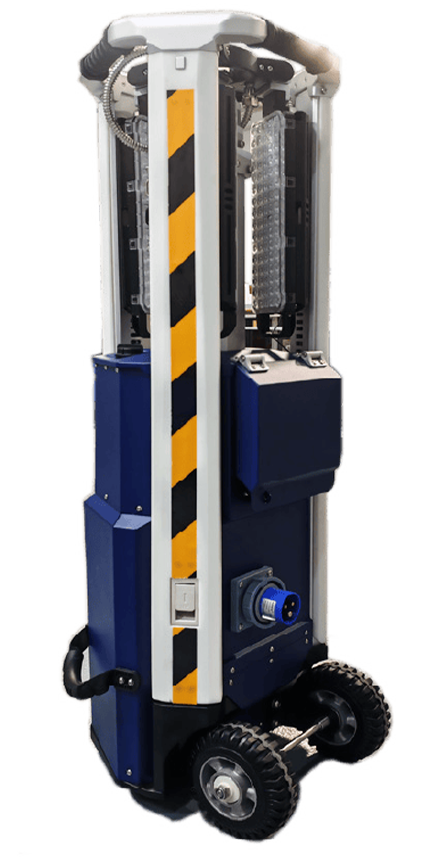

Battery light tower
Redefining Mobile Lighting: Fuji merges the versatility of a compact light tower with the need of rechargeable power, delivering seamless light control and mobility in one innovative solution.
“Saves on time & cost and so easy to set up”
“A standout in quality and performance”

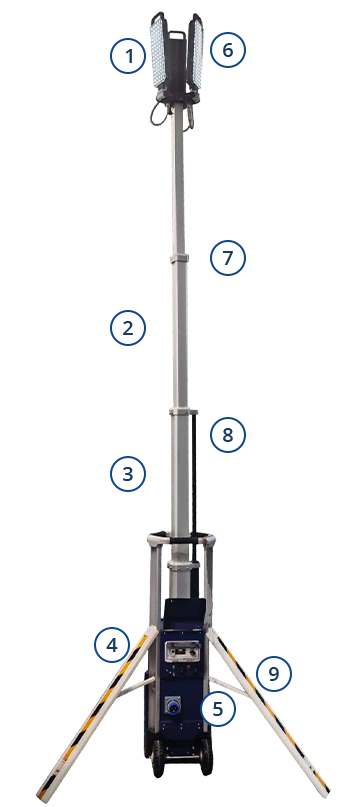

Features
1
LIGHTING PERFORMANCE
2
Operation
3
Safety & Stability
4

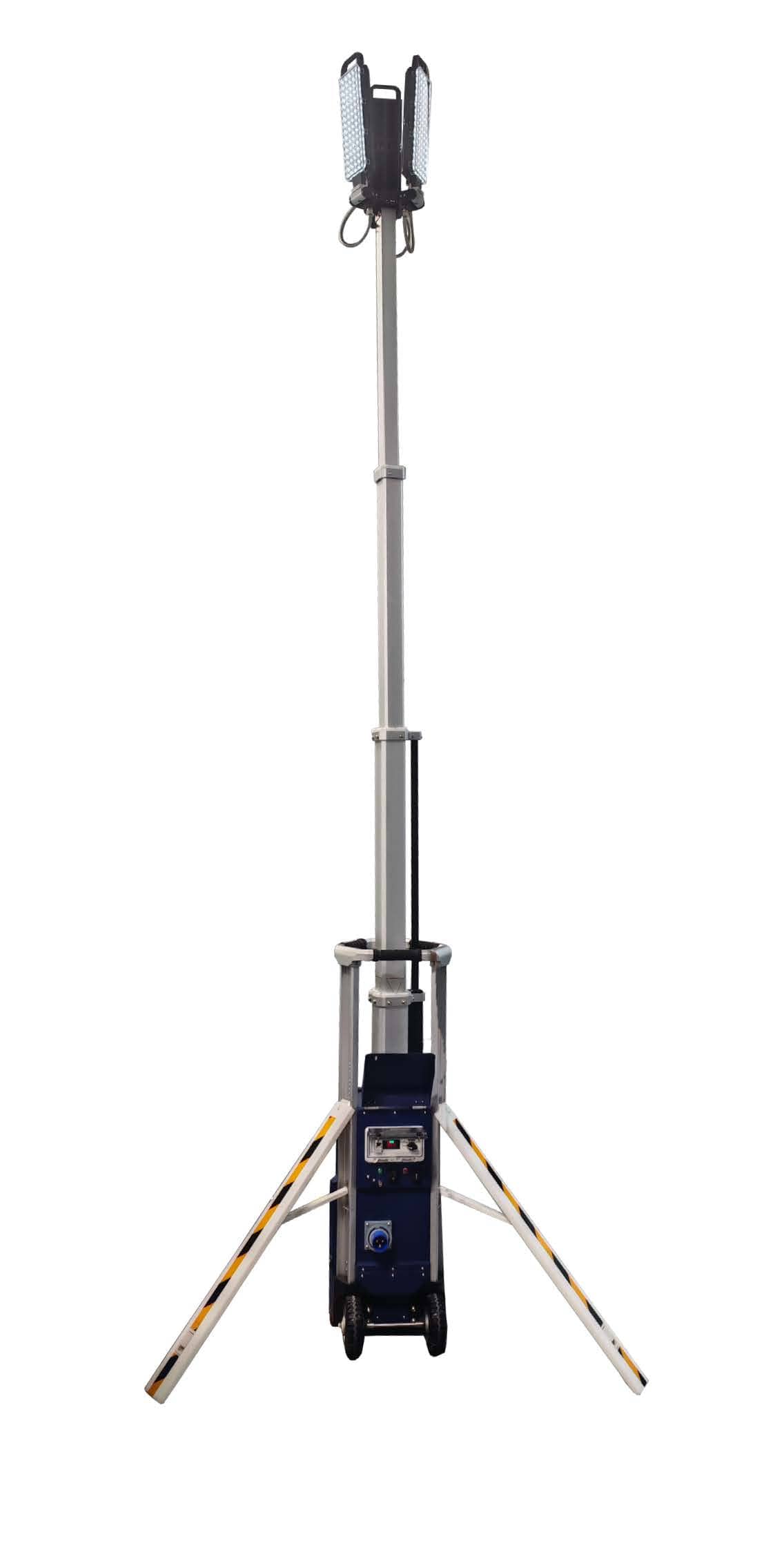

Mast
5
Battery Mode
6
ROTATABLE CROWN
SIMPLE, FOLD OUT, FULLY ROTATIONAL LIGHT HEADS
7
SUPER COMPACT & LIGHTWEIGHT
8
DIMMABLE
MINIMIZES ENERGY CONSUMPTION & DISRUPTION TO TRAFFIC AND RESIDENTIAL AREAS
9
Mobility
• PUNCTURE PROOF ALL TERRAIN TYRES
• ERGONOMIC HANDLES
FROM RAILWAY TO MINES
Designed for railway maintenance, emergency personnel, construction sites & mines.
A compact light tower with integrated battery makes it perfect match for temporary or emergency work.
BATTERY POWERED MOBILITY
| Output % | Output lumens | BLT-300-12 |
|---|---|---|
| 100% 300W | 48 000lm | 4H |
| 75% 225W | 36 000lm | 5H |
| 50% 150W | 24 000lm | 8H |
| 25% 75W | 12 000lm | 16H |
| 10% 30W | 4800lm | 40H |
ACCESSORIES
External charger
Extra battery
Terrain Wheels
Hard case box
tech spec
Model
| Fuji | Sierra |
| Model No. | BLT-300/ BLT-300-13 |
Performance
| Illuminated Surface | 980 m2 (min 5 lux) |
| System Power | 300W |
| Luminous Flux/Battery | 48,000 lm |
| Lumen/W | 160 |
| Beam Profile | 60 |
| Color Temperature (CCT) | 5000K |
| Battery Mode Run Time | 4-40H |
Electrical
| Operating Voltage | 100-110VAC/220-240VAC/50Hz/60Hz |
| Battery Capacity | 1,3kWh |
| Battery Type | LiFePO4 |
| Power Factor | >0.92 |
| Electrical Class | Class I |
| Protection | Over Voltage / Over Temp. / Short Circuit |
| Dimmable | Yes |
| Input Plug | CEE 230V / Customizable |
Environmental
| Ambient Operating Temp. range | -10ºC to +45ºC |
| Storage Temp. Range | -40ºC to +80ºC |
| IK class | IK08 |
| IP class | IP65 (lighting) / IP54 (chassi) |
| Noise Emissions | <15dB(A) |
Physical
| Fully extended height | 3,8m / 12,5ft |
| Elevation system | Electric |
| Mast Rotation | 340 |
| Mobility | By hand |
| Dimensions (min.) | 358 x 385 x 1088mm |
| Dimensions (max.) | 1303 x 1129 x 3800mm |
| Weight (Tower only) Including battery |
BLT-300 38kg/ 83Ib BLT-300-13 47kg/ 104lb |
| Wind Resistance | 30 m/s (preliminary) |
| Housing Finish | UV stabilised powder coating |
Approvals
| Certifications | CE |
| Service life L80 B50 (LED) | >100,000 h |
