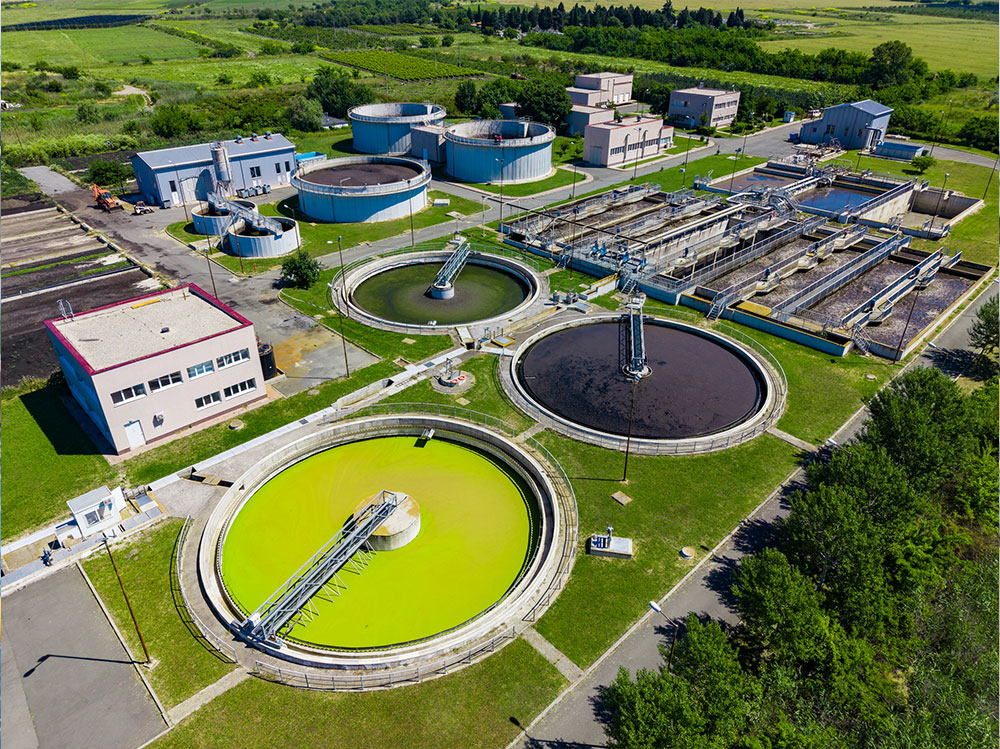

Emergency and Egress Lighting Inside Classified Wastewater Spaces

The requirements come from several documents

• Egress illumination requirements typically come from NFPA 101, Life Safety Code, or from the building code adopted by the jurisdiction. NFPA 101’s familiar benchmarks are an initial average of at least 1 foot-candle along the egress path, a minimum of 0.1 foot-candle at any point, and 90 minutes of duration on loss of normal power.
• Workplace exit routes are addressed by OSHA 29 CFR 1910.37, which requires exit routes to be adequately lighted and exits to be clearly marked.
• Emergency systems wiring falls under NEC Article 700, and legally required standby systems under Article 701, both in NFPA 70.
• Hazardous location requirements from NFPA 820 and NEC Articles 500 and 501 apply to every emergency luminaire, exit sign, and battery unit inside a classified space.

Confirm the adopted editions with the authority having jurisdiction before designing, because the benchmarks above can differ by edition and by the building code in force.

The equipment has to carry two listings

Emergency lighting equipment is evaluated to UL 924. Hazardous location luminaires are evaluated to UL 844. In a classified space you generally need both: the life safety performance and the hazardous location suitability. A standard commercial exit sign or bug-eye battery unit is not acceptable inside a Class I space.

Products that carry both listings exist for Division 2. The SpecGrade Discovery exit sign, for example, is edge-lit, qualifies for Class I Division 2, and maintains UL 844 and UL 924 listings along with NEMA 4X, IP66, and IK10 ratings. For Division 1 spaces, options are more limited and often heavier; confirm availability early in design.

Three design approaches

Integral battery luminaires place the battery and charger inside a hazardous location luminaire. They simplify wiring but put batteries in the hazardous and often hot, corrosive space. Check the battery’s rated ambient against the space temperature; battery life degrades quickly in hot galleries.

Central inverter or generator-backed circuits keep the energy source outside the classified space and feed standard hazardous location luminaires on emergency circuits. This is often the most maintainable solution in large plants that already have standby generation, but it depends on emergency circuit wiring and transfer equipment designed to NEC Article 700.

Remote battery units located in an unclassified electrical room can feed luminaires inside the classified space. They combine some benefits of both, provided voltage drop and circuit lengths are managed.

Design for the conditions of the emergency

• Assume the ventilation is off. Emergency lighting inside a ventilated Division 2 space must be suitable for that classification.
• Assume smoke, steam, or fog in galleries. Place exit signs and egress luminaires at lower heights where stratification could obscure ceiling-mounted units.
• Light stairs, ladders, hatches, and changes in elevation specifically; these are where injuries happen during an evacuation.
• Illuminate gas detection alarm panels, emergency ventilation controls, and the path to them.

Testing is part of the design

NFPA 101 requires periodic functional testing of emergency lighting, commonly a monthly 30-second test and an annual 90-minute test. In a classified space, testing access matters. Self-diagnostic units reduce entries. Central systems let staff test from outside the space. Specify whichever approach reduces time spent inside wet wells, pits, and tunnels, and coordinate it with the plant’s confined space procedures.
